Mk2 head removed

Caught an hour in the garage this afternoon and managed to remove the head from the mk2 engine. It wasn’t too involved – I’d already removed the inlet manifold. So today all I had to do was remove the exhaust manifold, rocker cover, a few coolant pipes and I slid the cam belt off to save stripping the front of the engine.

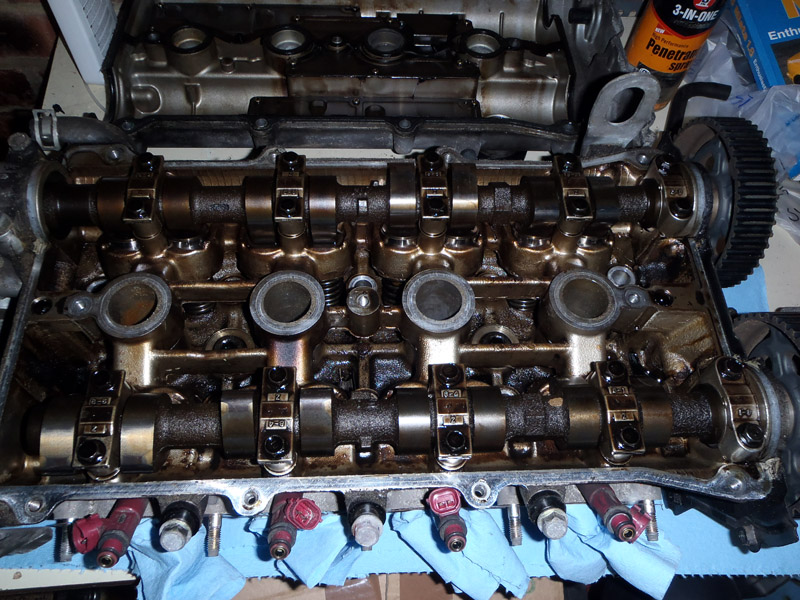

MX5 mk2 1.8 head

Everything looks in order with nothing that stands out. I did start to remove the bolt holding the inlet camshaft pulley on but with no joy – it’s pretty tight. I think I’ll have to get the impact gun on that to free it up.

Away from the garage I’ve been shopping and have ordered:

  • Paint for the engine
  • Megasquirt DIYPNP ECU

I think I’ll also need to order new crank and cam position sensors too. The cam position sensor on the mk2 engine seemed to have been snapped off, and I don’t think the crank sensor was even there at all. I need to investigate the cam position sensor a bit further – it looks like on the mk2 it reads the pulley and I was going to replace them with vernier pulleys.

Will hopefully steal a few evenings in the garage this week. Need to get on with the fiddly stuff of disassembling the head and removing the crank.

This entry was posted in Performance upgrades. Bookmark the permalink.
