Another factory visit and a few random bits

Back at the start of March I made another trip up to the factory. I dropped off the standard rear lights and roll bar and came away with an RAC bar. I also picked up:

  • Fan mounting bracket
  • Headlamp brackets for FW bonnet (didn’t realise standard ones weren’t used)
  • Bonnet lock set
  • Clamps for the upper steering column

Unfortunately, the digital dash I’d ordered hadn’t arrived yet and the middle steering column was still awaiting modification.

So, with lots of new bits I went home and promptly fitted something I already had – the ECU mounting plate. Now, I’ve mounted it to the top of hoop here and everyone else mounts it to the bottom. I didn’t deem it a mistake worth fixing though – how often will I need to drop the ECU? I’d also rather not be upside down in the footwell doing it anyway!

Unfortunately I didn’t have the strap to mount the ECU with so I used a few 90 degree brackets. Does the job! The ECU is sitting on sponge tape – I’m not expecting massive amounts of vibrations but every little helps, to coin an overused phrase.

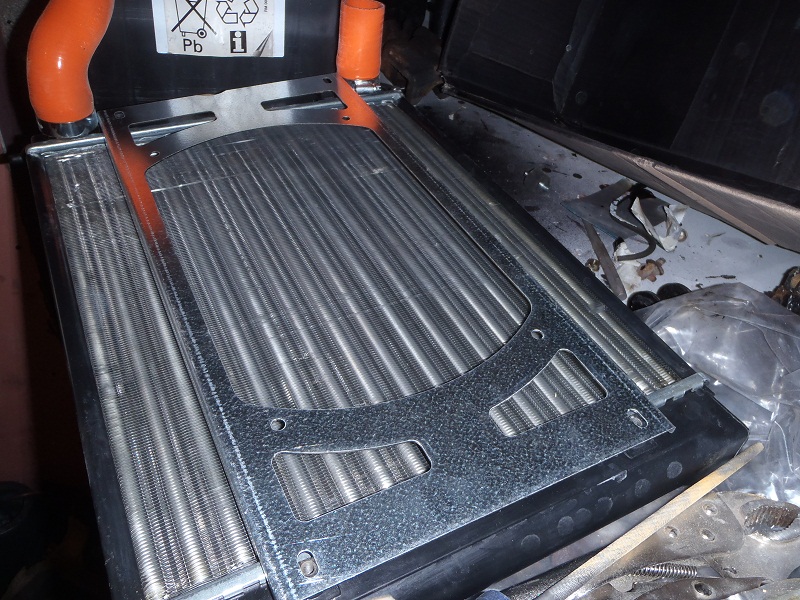

My kit came with an aftermarket fan and I wanted to use that rather than the Mazda one. The Mazda one is slightly too large for the radiator which seems a little pointless to me. I was going to modify the fan bracket to suit when I noticed these little beauties in the factory:

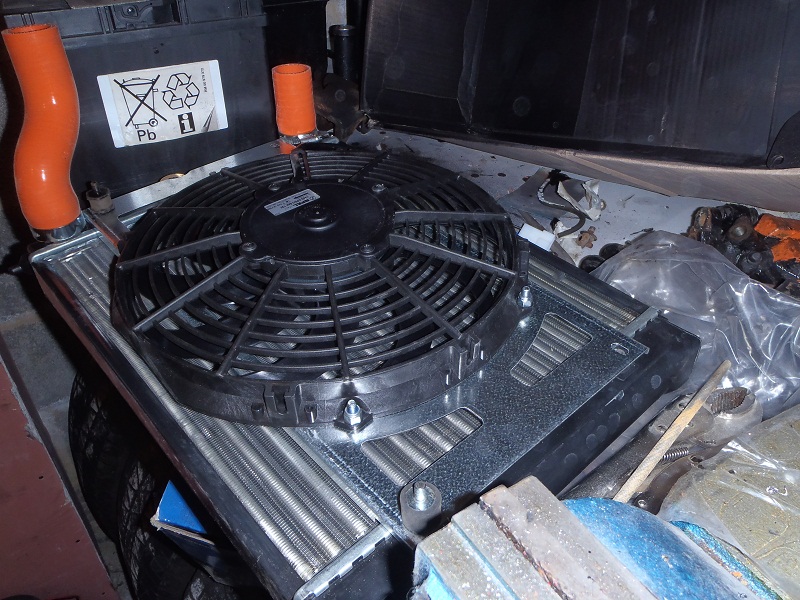

And so it was fitted and the radiator bolted back on. I hate those stupid little bolts needed to fit the radiator!

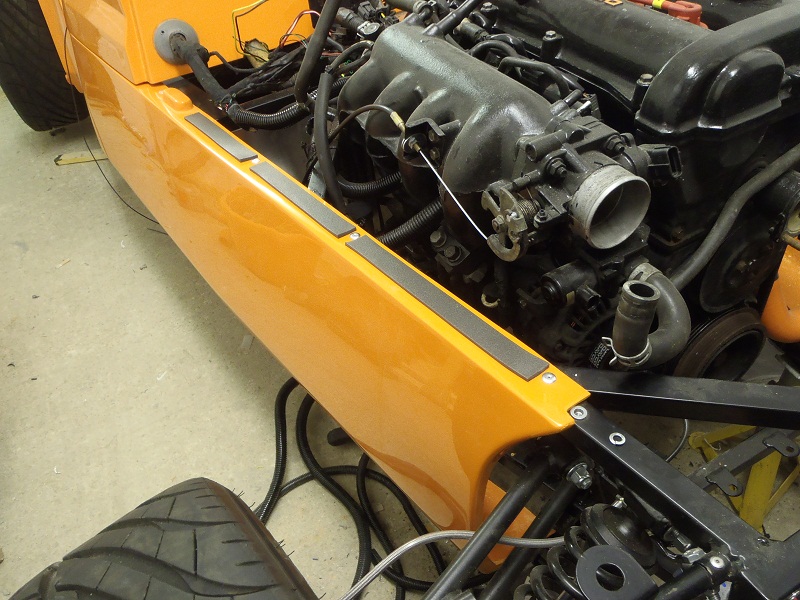

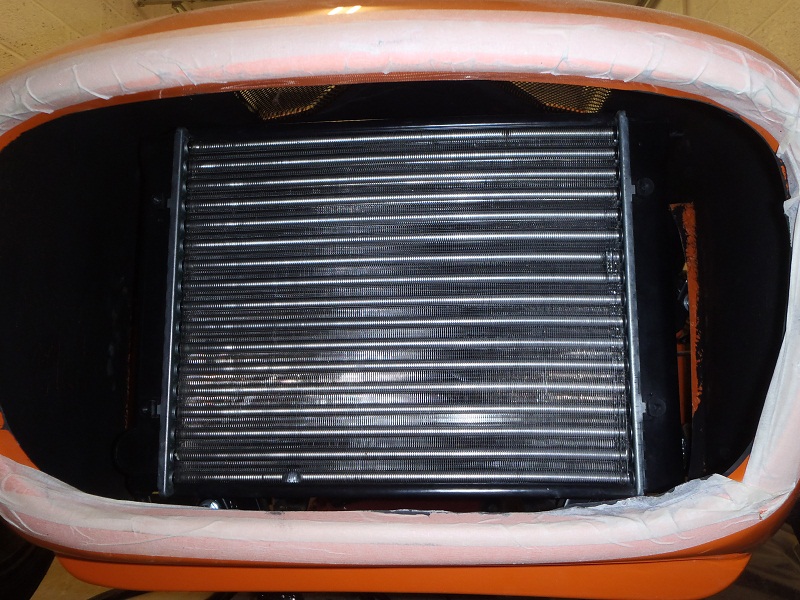

Final job of the day was to stick some tape down as protection for the bonnet (both sides)

This entry was posted in Build. Bookmark the permalink.
